Strutfoot Slider

StrutFoot: Universal Flat Roof Support System. Designed & manufactured in the UK

StrutFoot - Call StrutDirect on 01922 650 174

H Frame slide

StrutFoot H Frame Kit: Offers total control of cable management on flat roof installations.

Unistrut cutting service for H Frame kits available.

AirCool slide



Recent Installation of StrutFoot

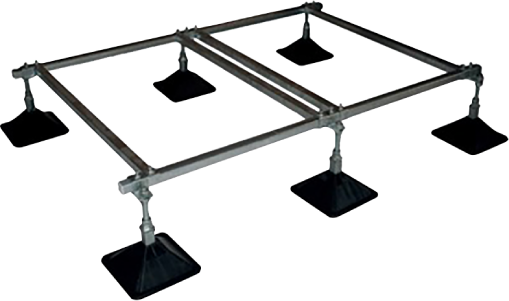

The StrutFoot™ Flat Roof Support System, offering total flexibility for design layout & installation.

  • StrutFoot - Independently designed & manufactured in the UK
  • UNISTRUT© framework provides strength & convenience for cable management installation
  • Cross compatibility with all UNISTRUT© type brackets
  • Fast & economical systems for mounting M&E services, Air Conditioning & refrigeration on flat roofs
  • Easy to install for individual products or complete installations
  • No penetration of waterproof roof membrane
  • Standard & bespoke configurations to suit your requirements.
  • Anti-Vibration pads pre attached to feet
  • Feet & blocks available separately
  • H Frame kits available with pre cut UNISTRUT© channel
  • Complete backup for all your cable management requirements



Image Gallery - Click to enlarge

blog H Frame jpeg FX RANGE SF2 MOCK UP SF4 MAIN VIEW


StrutFoot Support System - Technical Information

Part No.Foot assembly suppliedSliding arms suppliedSteel Frame Length (mm)Steel Frame Width (mm)Overall Max Width (mm)Overall Min Width (mm)Product Weight (Kg)Max S.W.L (Kg)
StrutFoot 2 4 2 1000 1300 1670 1450 32 700
StrutFoot 4 6 4 2000 1300 1670 1450 54 1050
StrutFoot 6 8 6 3000 1300 1670 1450 78 1400
StrutFoot 8 10 8 4000 1300 1670 1450 101 1750
StrutFoot 10 12 10 5000 1300 1670 1450 124 2100
StrutFoot 12 14 12 6000 1300 1670 1450 148 2450

Welding to BS287-1
Galvanising to BS EN IS0 1461:1999






Latest news & updates from StrutFoot

StrutFoot image

Thursday 20th June 2013

StrutFoot new website has gone live. What does everybody think?

Joey Sumulong, Mechanical Project Engineer, contacted the office regarding a StrutFoot configuration to accomodate 2 large Air conditioning condenser units. The sheer size of the units dictated that a StrutFoot6 was recommended.

Once the StrutFoot6 had been installed, the two 285kg units were lifted by crane to the roof of the building in Colmore Row, Birmingham, and secured. The whole process took only a few hours and Joey stated later by email that the "Client was pleased with the installation".

(StrutFoot6 Shown with 2 crossbars removed)
